Brand Name : ihomepager
Model Number : C302+IXD-209B
Product Name : call bell switch
Physical Dimension : 60*28*20mm
Button Weight : 20g (With battery)
Control : Single Call Button
Output Power : 10dB
Frequency Band : 433.92MHz
Transmission Range : 500m free field
Button Battery : Button Battery:CR2023
Support Costomed logo : Yes
Button Feature : can be paste up anywhere
Selling Units : Single item
Single package size : 20X15X10 cm
Single gross weight : 2.0 kg
Package Type : carton
MOQ : 1 Set
Price : $4.00 - $199.00 / Set
Supply Ability : test
Hot sales service call system, could be use as school bell,canteen pager
1. System Configuration
(1) Transmitter
(2) Signal Receiver
2. How it Works
The transmitter is for guest use
The signal receiver is for waiter or waitress use.
3. About Transmitter
Model | IHOME-c302 |
Physical Dimension | 60*60*18mm |
Transmitting frequency | 433.92 MHZ |
Control | service,cancel |
Transmitting distance | 500m free field |
Batery | Alkaline Battery 23A 12V |
Long Life of Battery | Half of a year 50 calls in a day |
Waterproofbase | yes |
4. Recommended Receiver

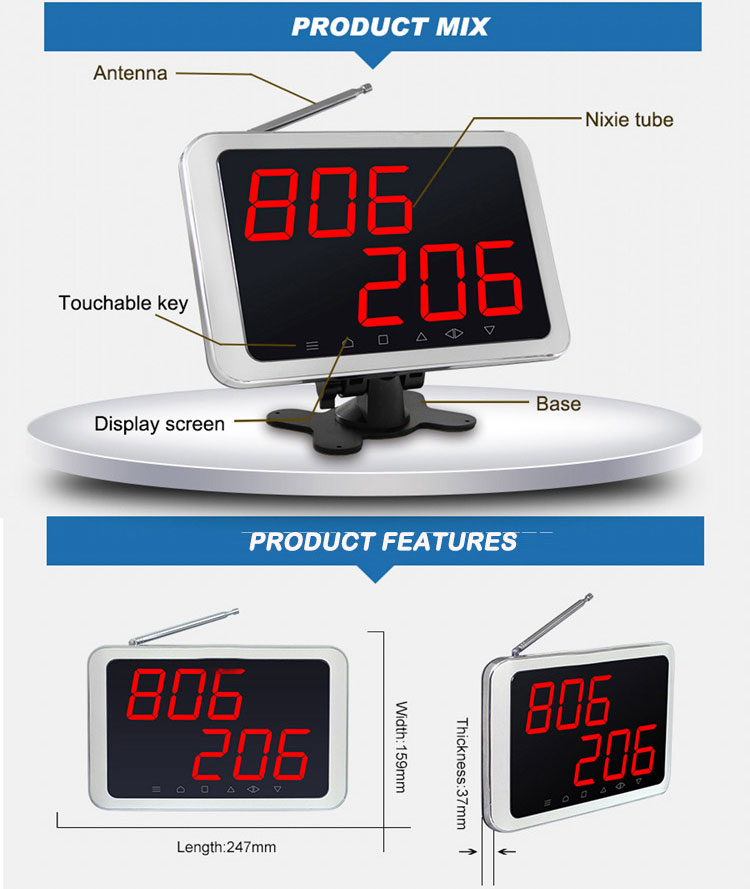

HCM1200
Dimensions | 247mm*159mm*37mm | Net Weight | 1kg |
Material | Polyurethane + PC | Alert Period | 1-99 Seconds |
Surface Treatment | Wearable UV Painting | Receive Sensibility | -114dBm |
Color | Silver | Frequency | 433.92Mhz |
Carry Style | Put on the table or fixed on the wall freely | EMC Anti-Interference | Strong |
Display Screen | number in different colors | Call Button Capacity | 500 numbers |
Function Keys | FUN, ENT | Number Storage | 10 recent number |
Display Mode | 6digits | Alert Mode | 12 Music chords or Voice Alert |
Key life | Million Times Press | Deletion Mode | Manually or Automatically |
Power input | AC 100-220V, 50-60HZ | Standby Period | 5 days |
Power output | DC5V/0.1A | Letter and No. Display | 0-9 and A-Z |
HCM3003
Dimensions | 240mm*140mm*40mm | Net Weight | 540g |
Material | ABS(imported from Taiwan) | Music category | 12 chord music |
Surface Treatment | Dull polish | Receive Sensibility | -114dBm |
Color | Black White | Frequency | 433.92Mhz |
Key life | Million Times | EMC Anti-Interference | Strong |
Power input | AC 110-240V, 50-60HZ | Call Button Capacity | 180 |
Power output | DC12V/1A | Nixie tube color | Red |
Display time | 1-99 Seconds(one digit means 2 seconds) | Display type | Three group of two digits |
English letters display | A,B,C,D,E,F,H,P | Installation mode | Table model,hanging model |
Prompt music length | 01-15lengths(one digit means 2 seconds) |
5. System Advantages
Advantage to Customer
Advantage to Business
6. Warranty Conditions
We provide 1 month replacement and 12 months maintenance warranties. Items can be replaced during the first month or maintained for the first year.
7. Promised by Seller about Returns
We do our best to serve our each customer the best that we can.
We will refund you for items returned within 7 days of you receiving them, for any reason. A full refund will be given if items are returned in their original condition.
--------------------------------------------------------------------------------------------------
